UNITPACKPOWER Electric Bike Battery Pack For E-Bike And Scooter Motors
UNITPACKPOWER Electric Bike Battery Pack For E-Bike And Scooter Motors
Couldn't load pickup availability

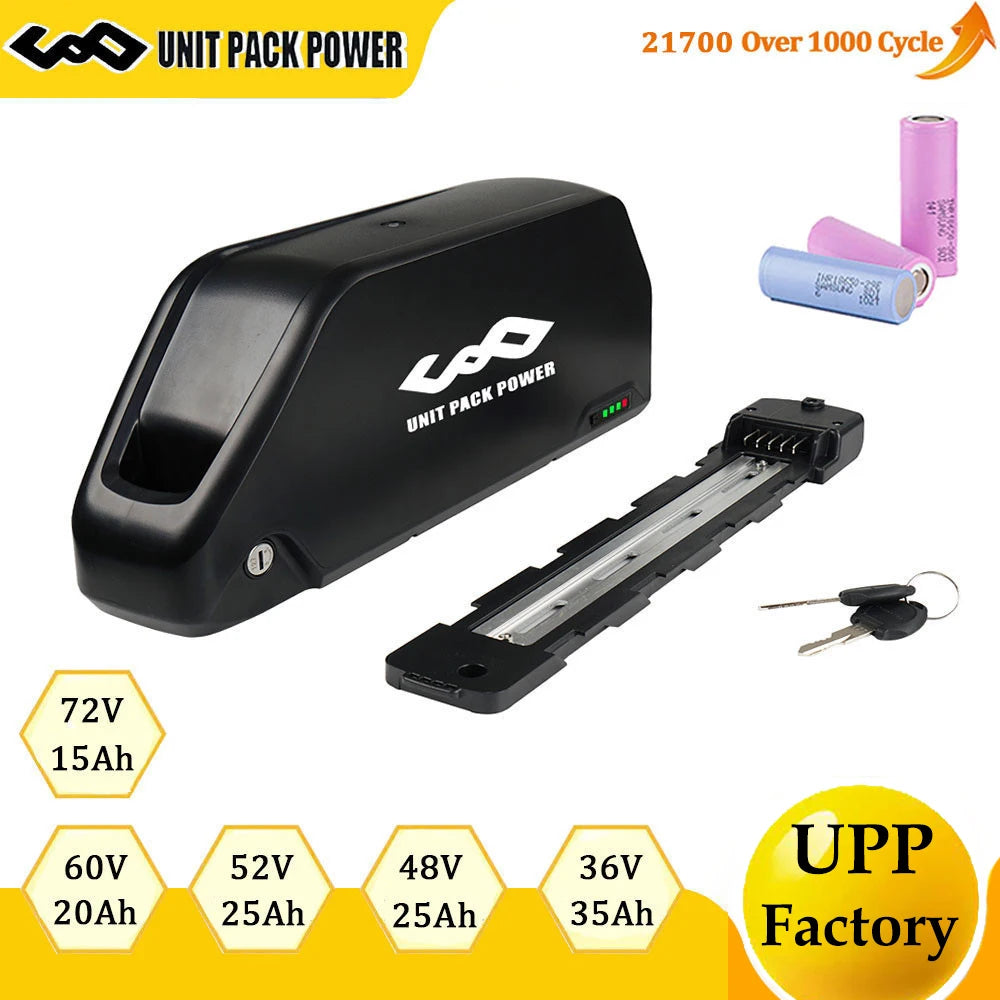

Choose a voltage and capacity to suit your e-bike or scooter setup, with this downtube battery offered in multiple configurations.

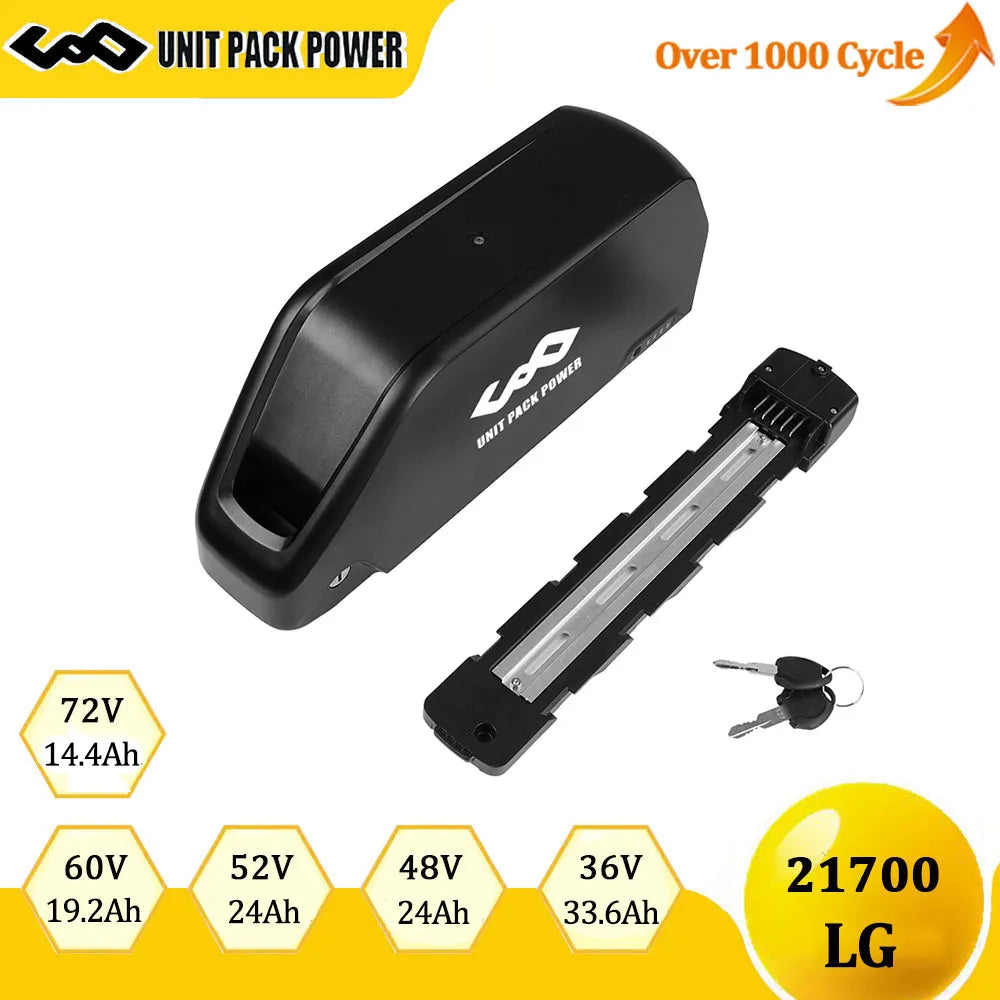

- Voltage and capacity options: Select from 36V, 48V, 52V, 60V, or 72V, with listed capacities from 14.4Ah to 35Ah.
- Motor matching: Configurations are listed for motors from 250W to 2250W; match the battery voltage and BMS current to your motor and controller.

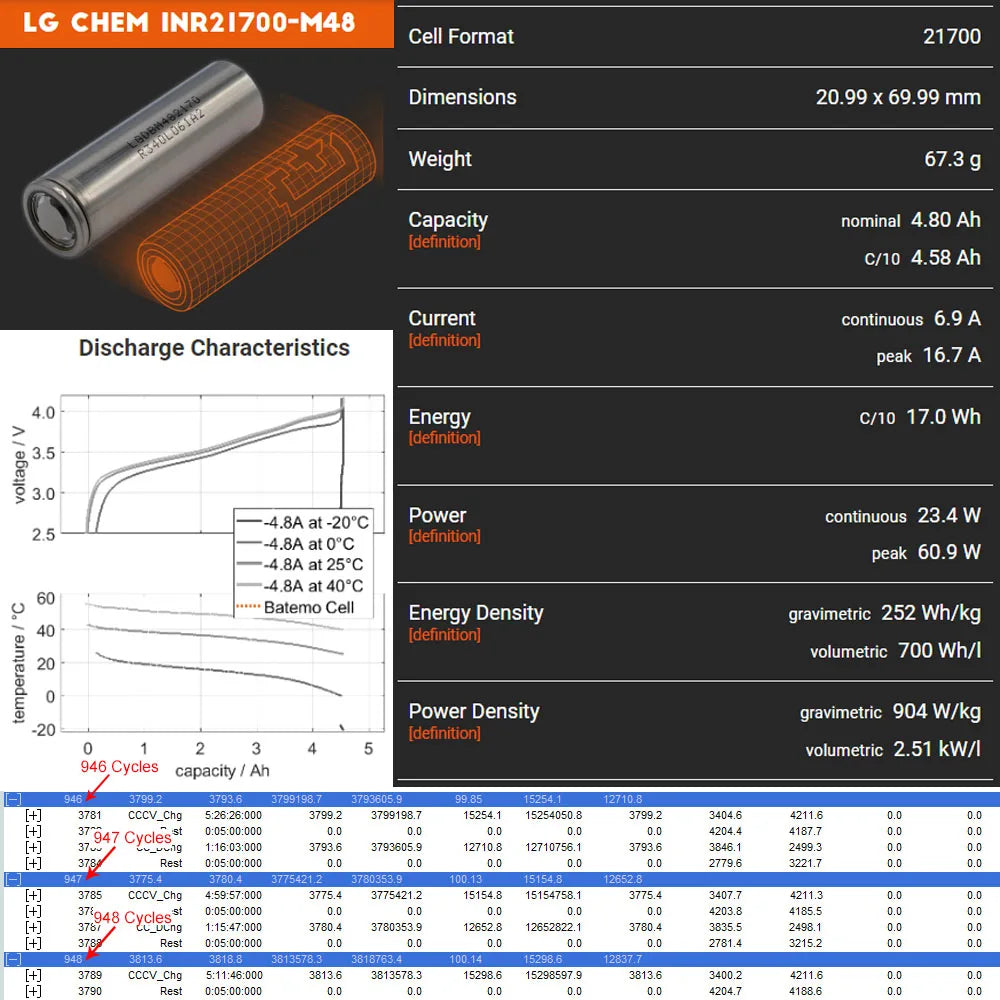

- 21700 cells: Listed versions use L-G 4800mAh or Sam--ung 50E cells, with cycle-life claims varying by configuration.

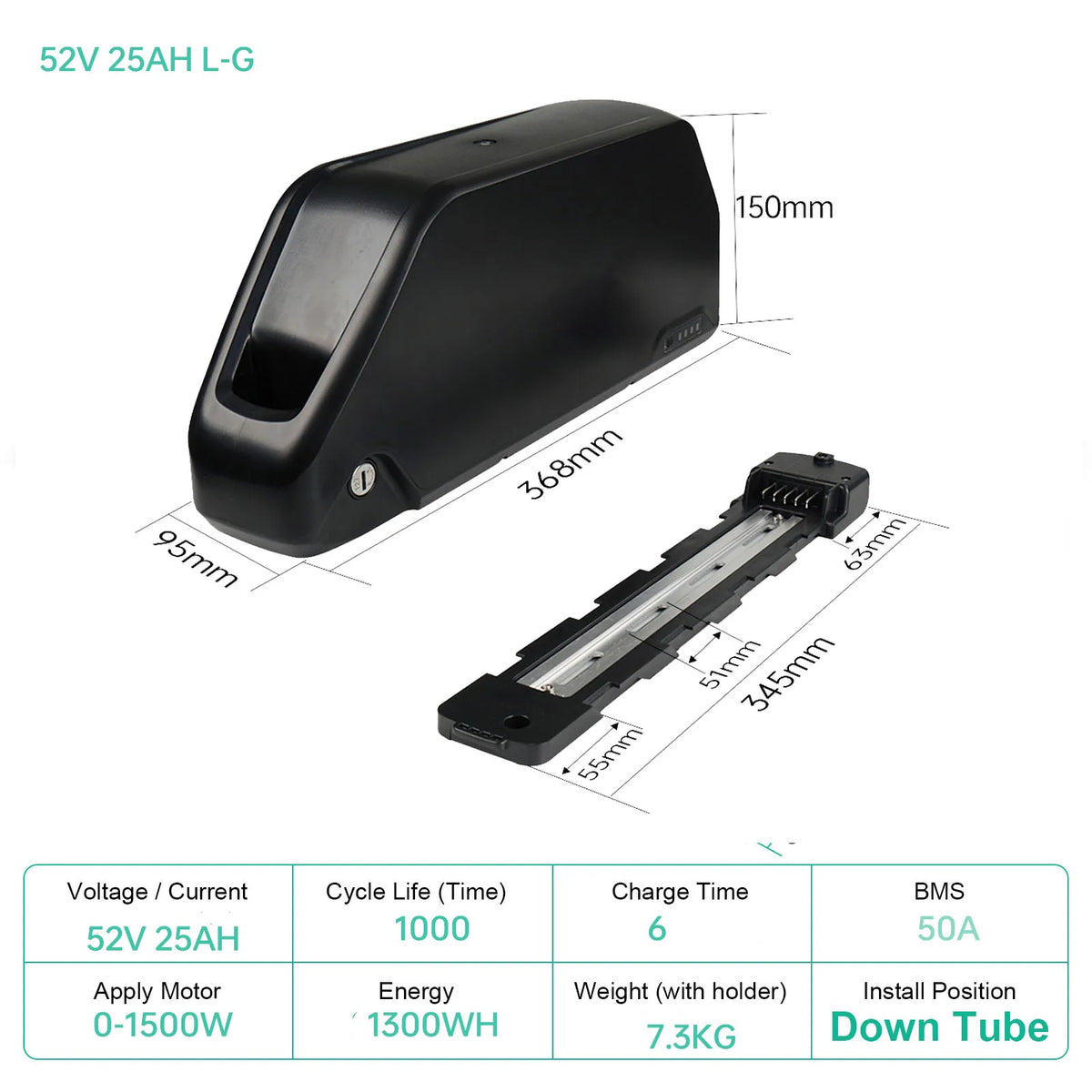

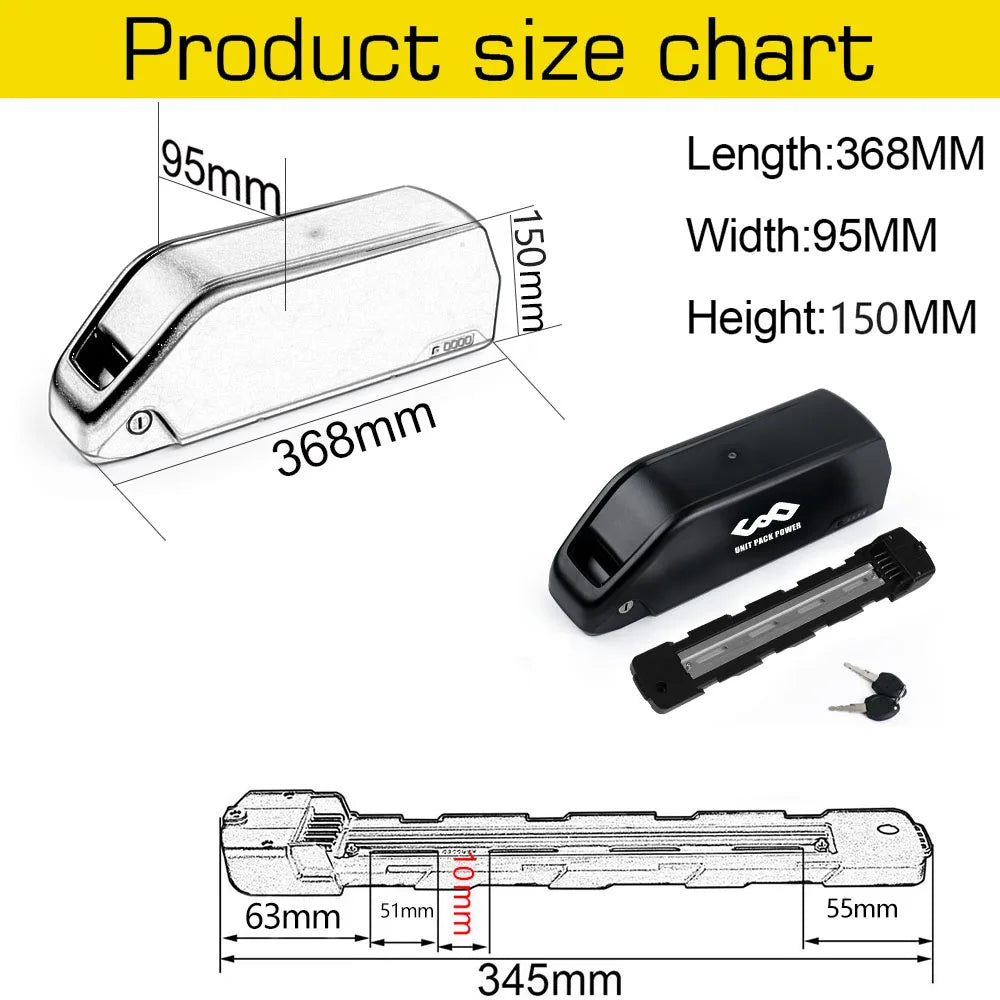

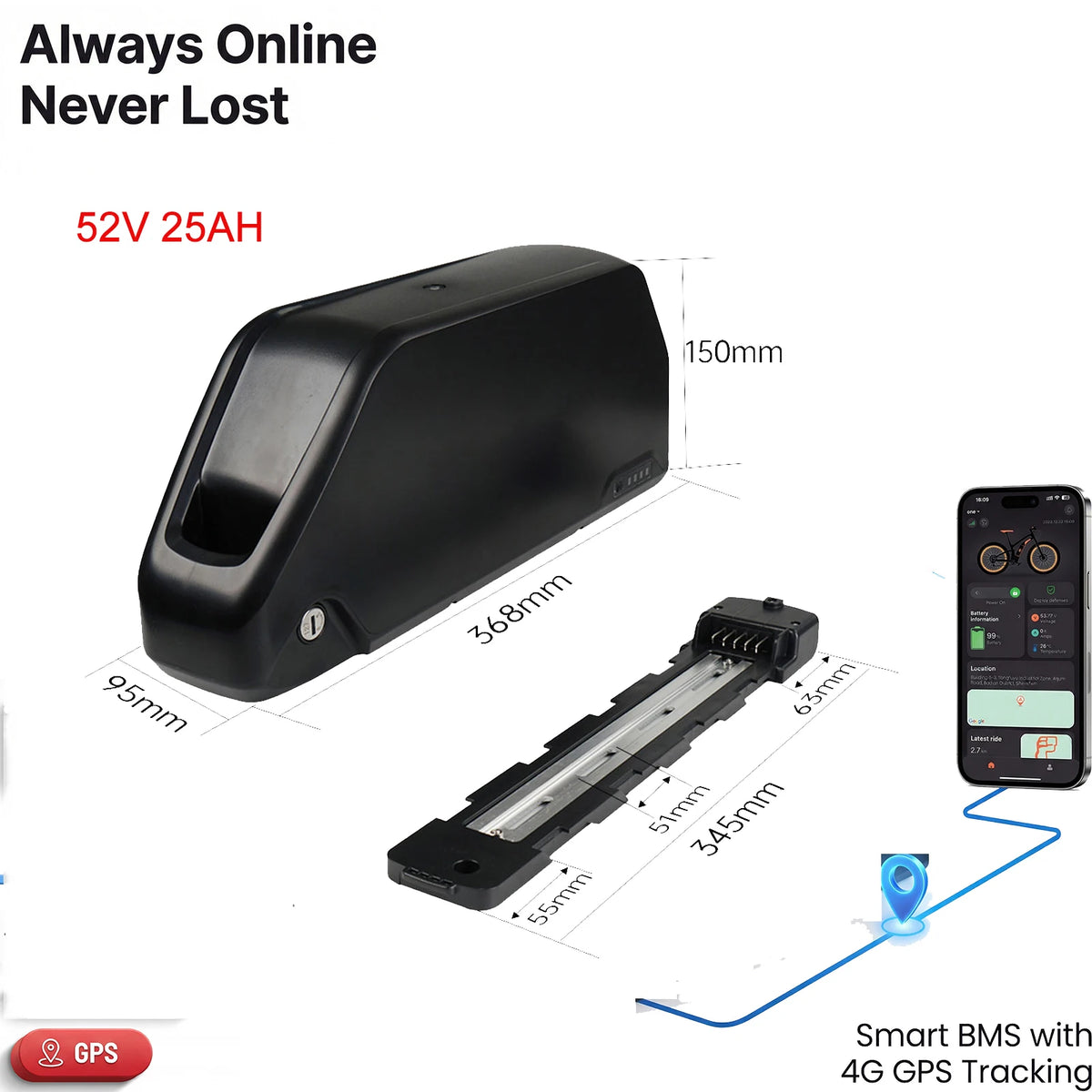

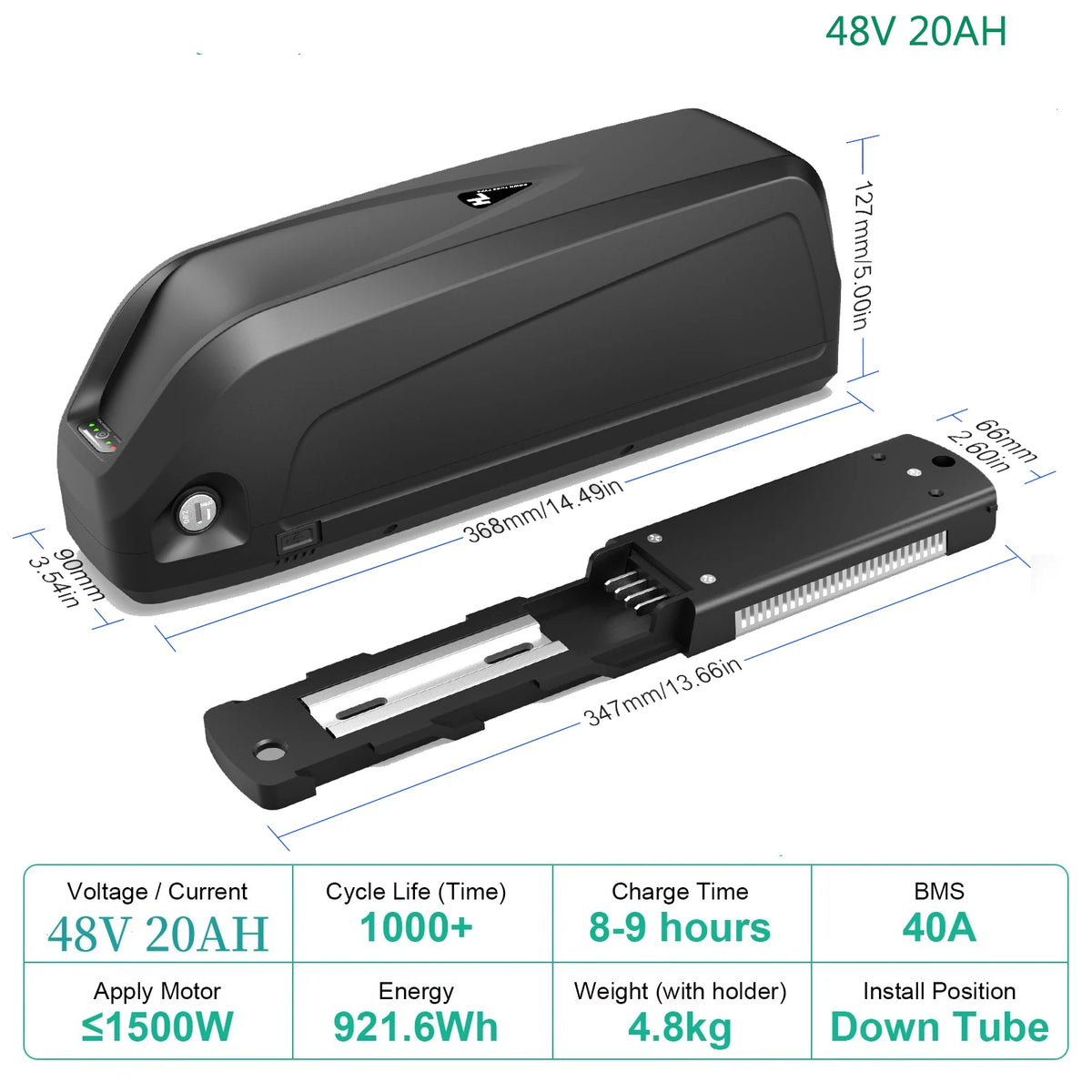

- Downtube fit: The battery measures 368 × 95 × 150mm; listed configuration weights range from 5.3kg to 6kg.
- Configuration details: Listed builds use 40A or 50A BMS ratings, with charger specifications varying by battery voltage.

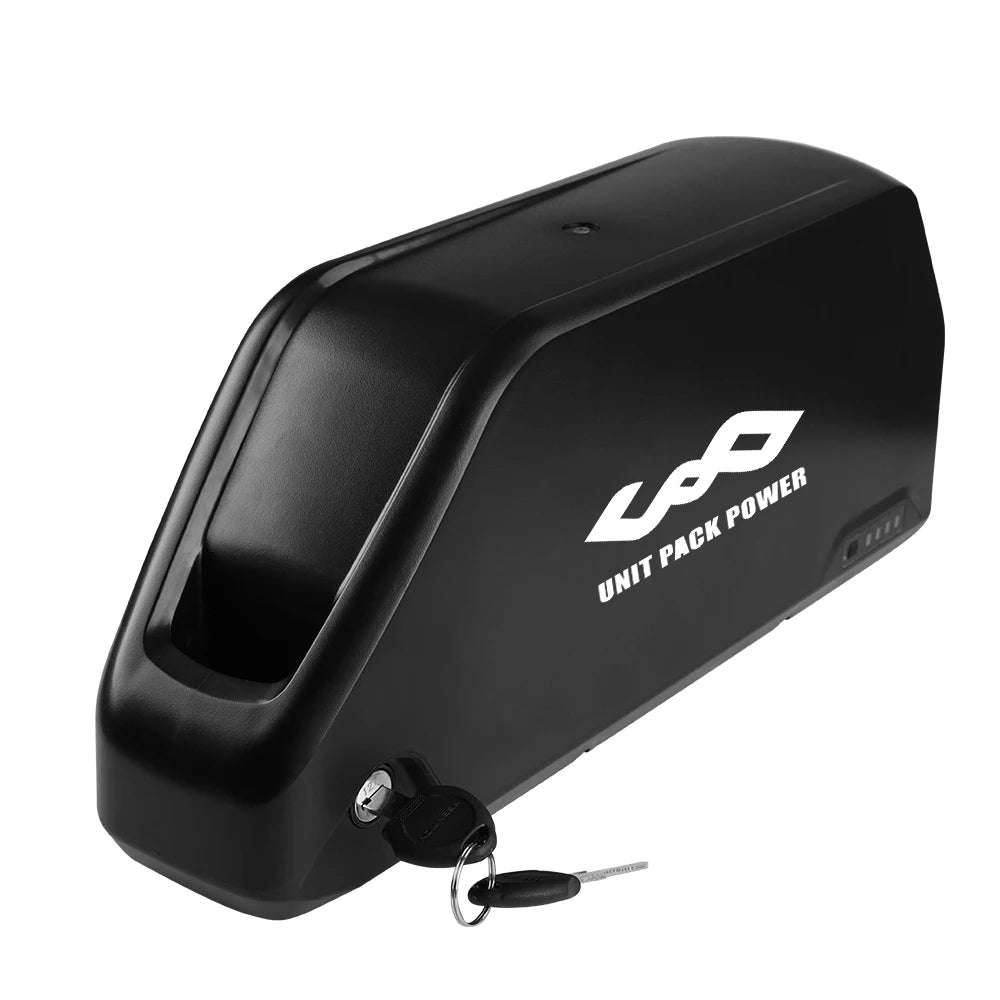

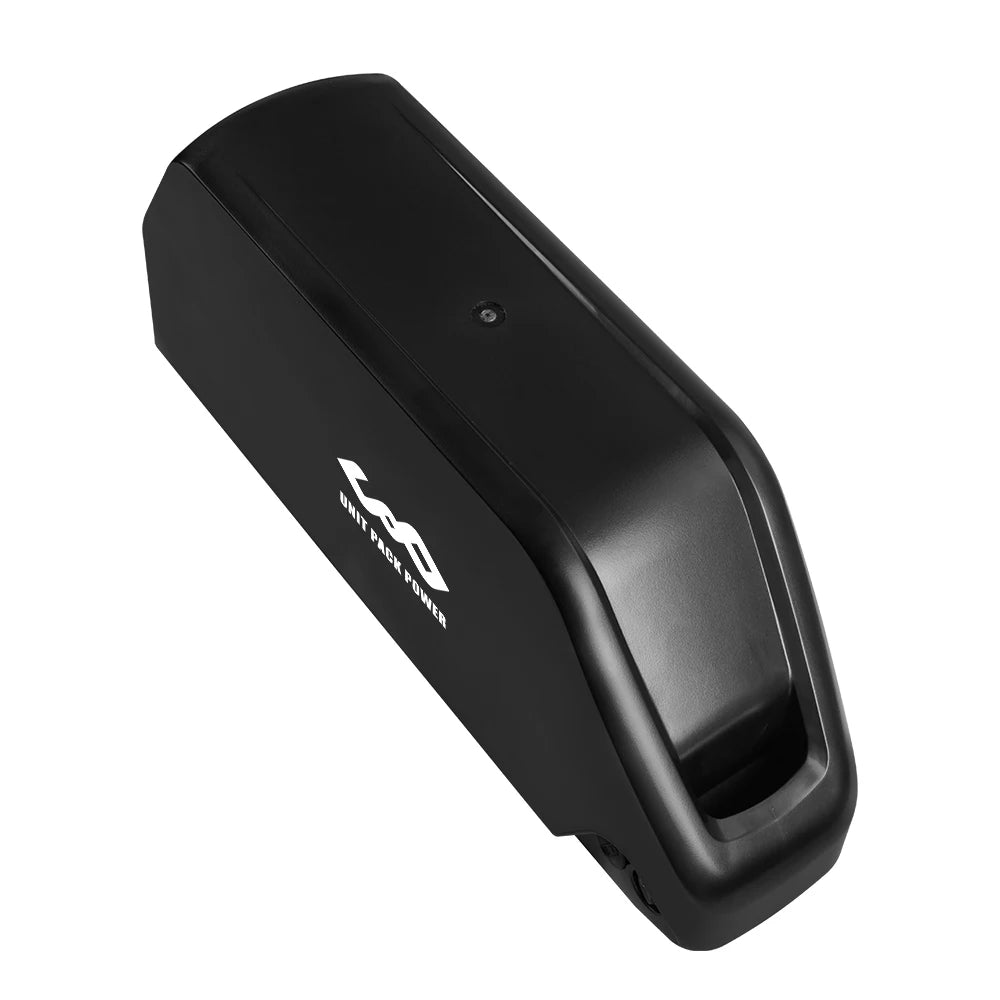

- Stronger case: Its case is described as stronger than a standard Hailong case, while the 12-month warranty adds purchase reassurance.

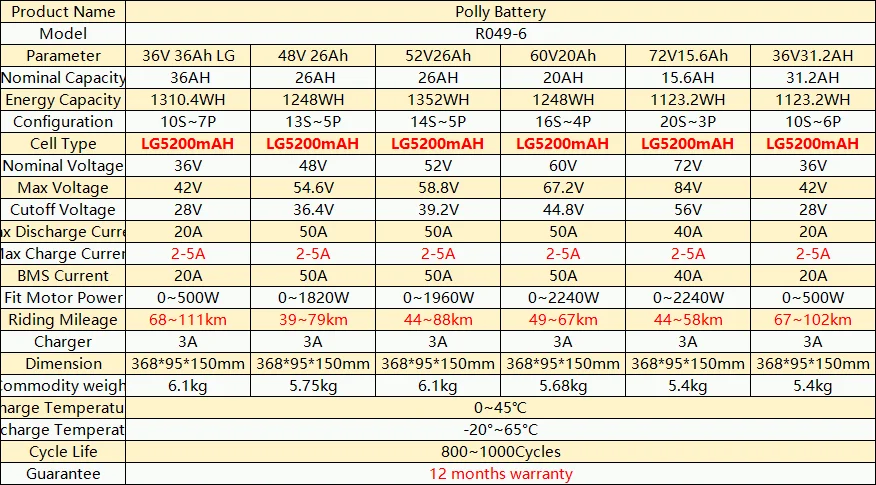

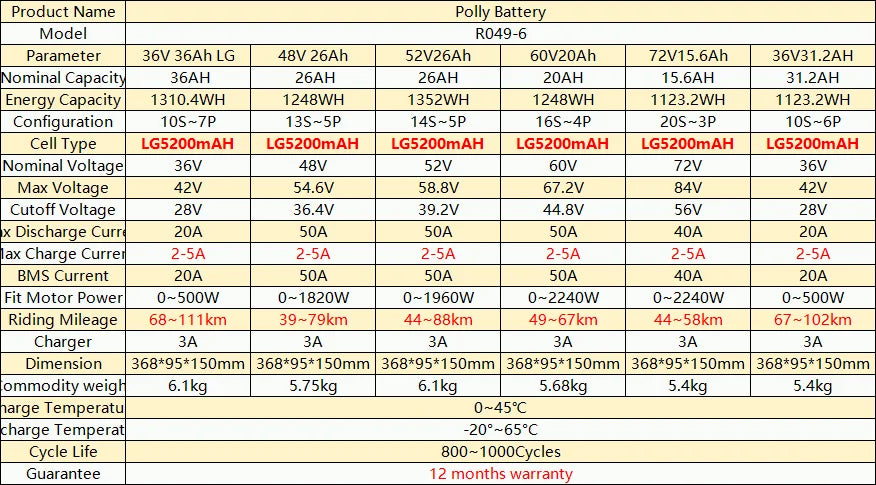

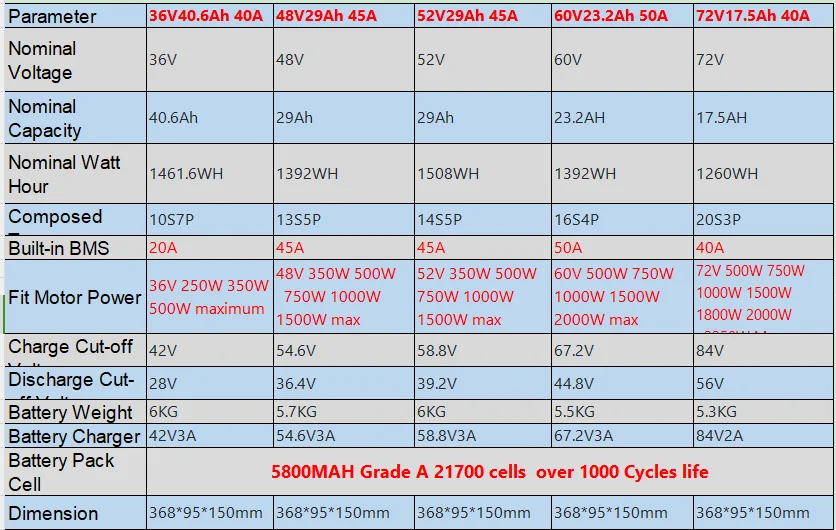

Parameter |
36V33.6Ah 40A |
48V24Ah 40A |
52V24Ah 40A |
60V19.2Ah 50A |
72V14.4Ah 40A |
Nominal Voltage |
36V |
48V |
52V |
60V |
72V |
Nominal Capacity |
33.6Ah |
24Ah |
24AH |
19.2AH |
14.4AH |
Nominal Watt Hour |
1209WH |
1152WH |
1248WH |
1152WH |
1036WH |
Composed Type |
10S7P |
13S5P |
14S5P |
16S4P |
20S3P |
Built-in BMS |
40A |
40A |
40A |
50A |
40A |
Fit Motor Power |
36V 250W 350W 500W 750W 1000W maximum |
48V 350W 500W |
48V/52V 350W 500W 750W 1000W 1500W max |
60V 500W 750W 1000W 1500W 2000W max |
72V 500W 750W 1000W 1500W 1800W 2000W |
Charge Cut-off Voltage |
42V |
54.6V |
58.8V |
67.2V |
84V |
Discharge Cut-off Voltage |
28V |
36.4V |
39.2V |
44.8V |
56V |
Battery Weight |
6KG |
5.7KG |
6KG |
5.5KG |
5.3KG |
Battery Charger |
42V3A |
54.6V3A |
58.8V3A |
67.2V3A |
84V2A |
Battery Pack Cell |
L-G 4800mAh Grade A 21700 cells over 1000 Cycles life |
||||
Dimension |
368*95*150mm |
368*95*150mm |
368*95*150mm |
368*95*150mm |
368*95*150mm |
Parameter |
36V35Ah 40A |
48V25Ah 45A |
52V25Ah 40A |
60V20Ah 50A |
72V15Ah 40A |
Nominal Voltage |
36V |
48V |
52V |
60V |
72V |
Nominal Capacity |
35Ah |
25Ah |
25Ah |
20AH |
15AH |
Nominal Watt Hour |
1260WH |
1200WH |
1300WH |
1200WH |
1080WH |
Composed Type |
10S7P |
13S5P |
14S5P |
16S4P |
20S3P |
Built-in BMS |
40A |
40A |
40A |
50A |
40A |
Fit Motor Power |
36V 250W 350W 500W 1000W maximum |
48V 350W 500W |
48V/52V 350W 500W 750W 1000W 1500W max |
60V 500W 750W 1000W 1500W 2000W max |
72V 500W 750W 1000W 1500W 1800W 2000W |
Charge Cut-off Voltage |
42V |
54.6V |
58.8V |
67.2V |
84V |
Discharge Cut-off Voltage |
28V |
36.4V |
39.2V |
44.8V |
56V |
Battery Weight |
6KG |
5.7KG |
6KG |
5.5KG |
5.3KG |
Battery Charger |
42V3A |
54.6V3A |
58.8V3A |
67.2V3A |
84V2A |
Battery Pack Cell |

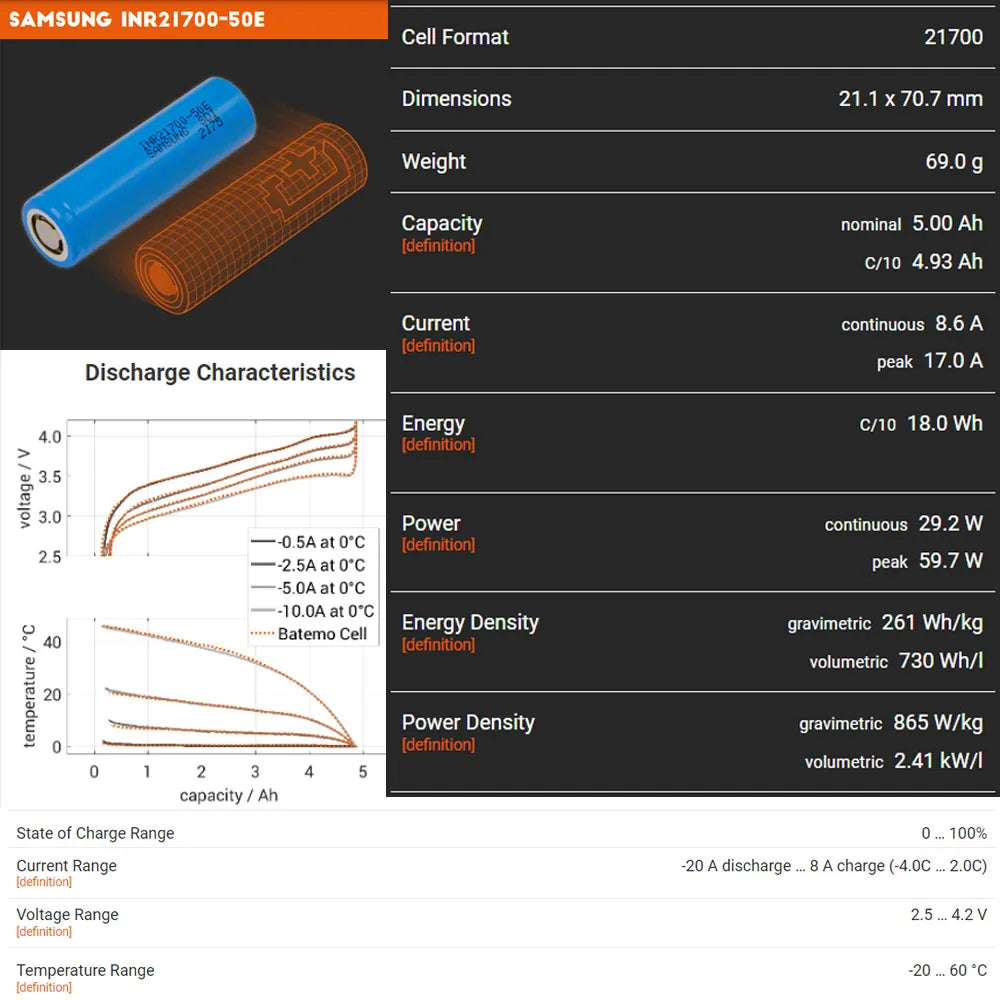

DC 5000mah /Sam--ung 50E mAh Grade A 21700 cells 800-1000 Cycles life |
||||
Dimension |
368*95*150mm |
368*95*150mm |
368*95*150mm |
368*95*150mm |
368*95*150mm |
